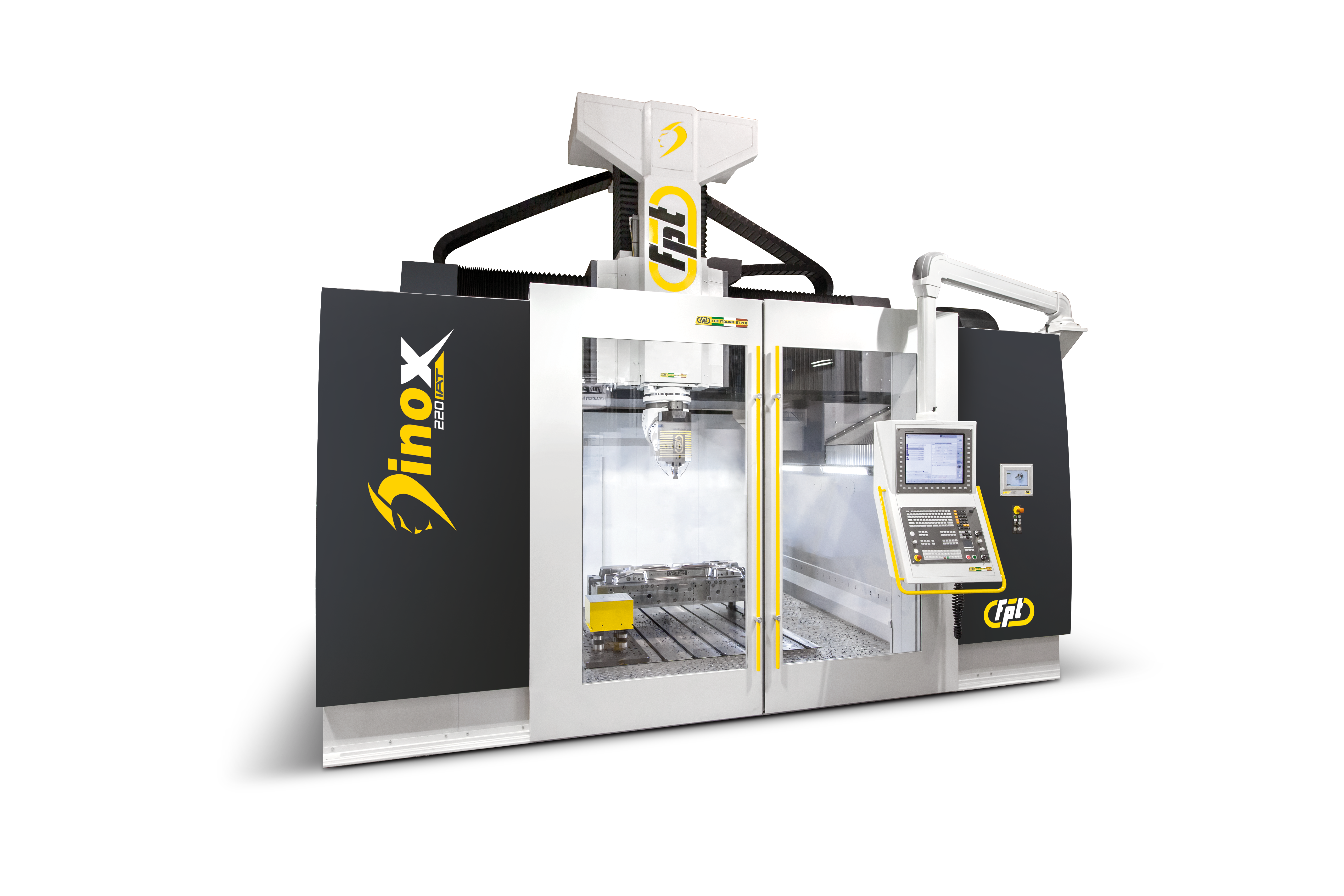

    Dinox 220 IAT

    Vertical Milling Machine

    • Precision through thermal control: IAT system actively stabilizes accuracy, even under fluctuating temperatures.
    • Rigid gantry design: FEM-optimized cast structure ensures stability during heavy-duty cutting and high-speed finishing.

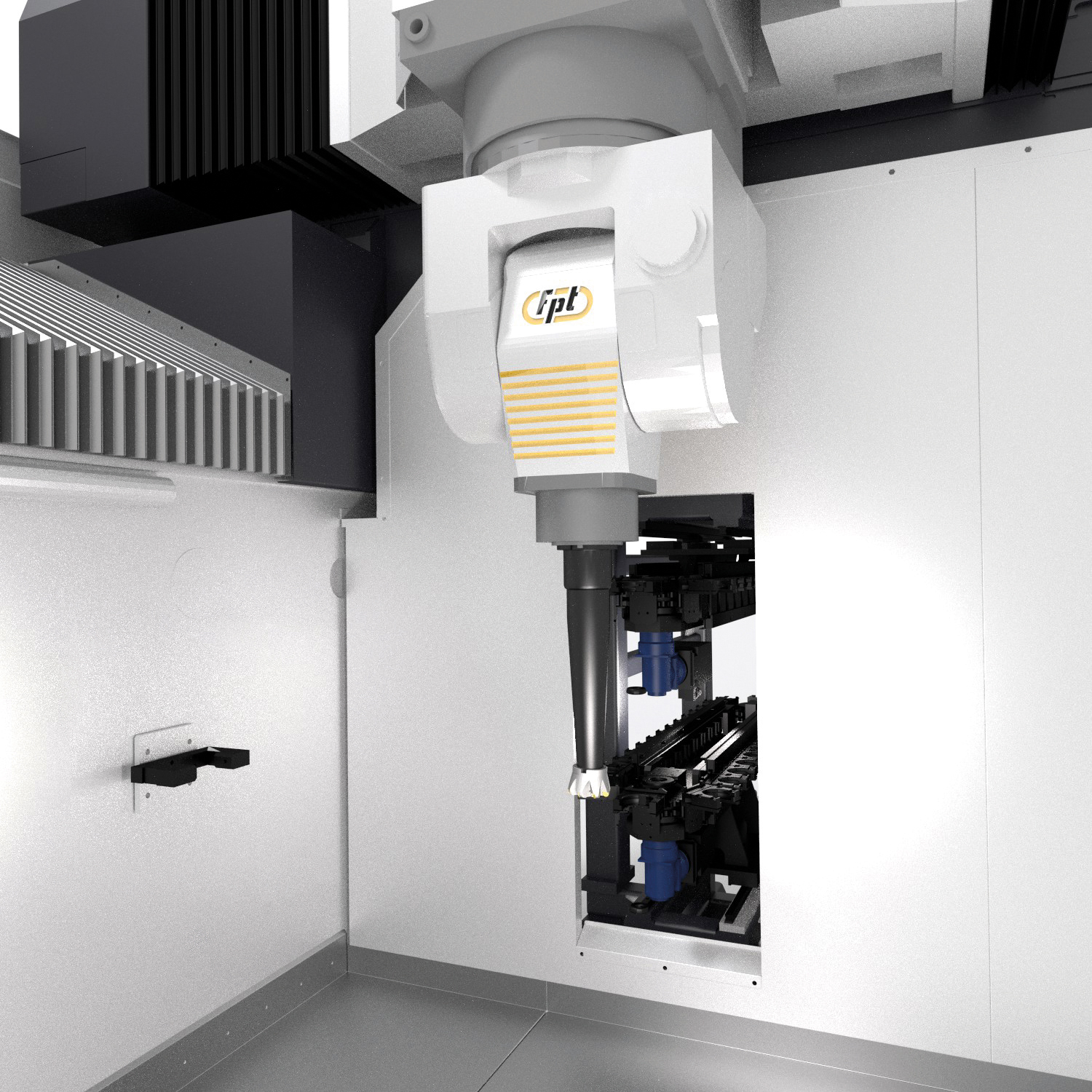

    • Autonomous machining: Tool magazines up to 300+ tools allow long production runs with minimal intervention.

    Highlights

    • Travels - X Axis Travel distance (mm): 2500
    • Travels - Y Axis Travel distance (mm): 2200
    • Travels - Z Axis Travel distance (mm): 1100

    Vai interesē šī iekārta? Pievienojiet to savam pieprasījumu sarakstam un nosūtiet mums nesaistošu pieprasījumu. Mūsu speciālisti palīdzēs izvērtēt iekārtu un sagatavos cenu piedāvājumu, kas atbilst jūsu ražošanas vajadzībām.

    Series description

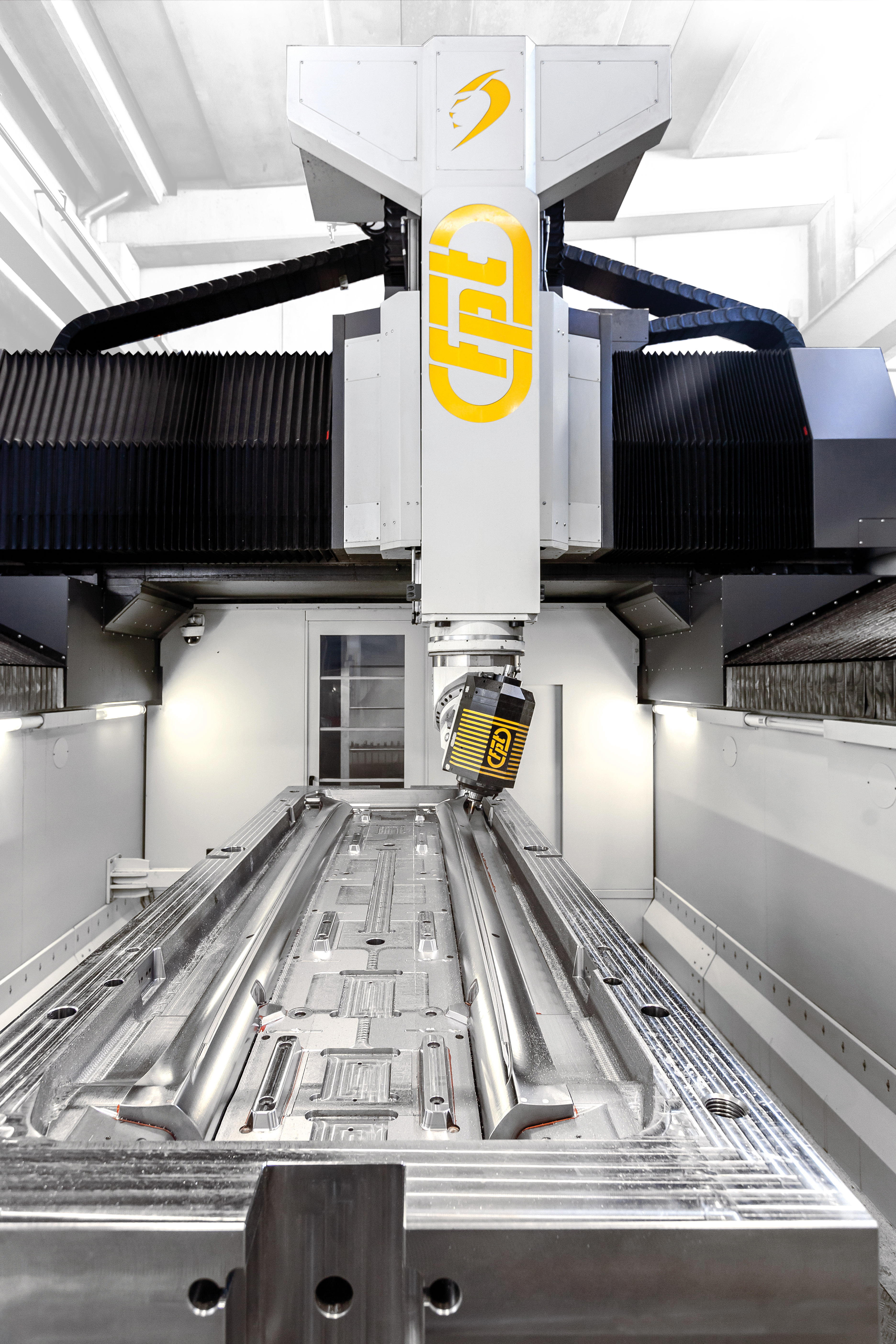

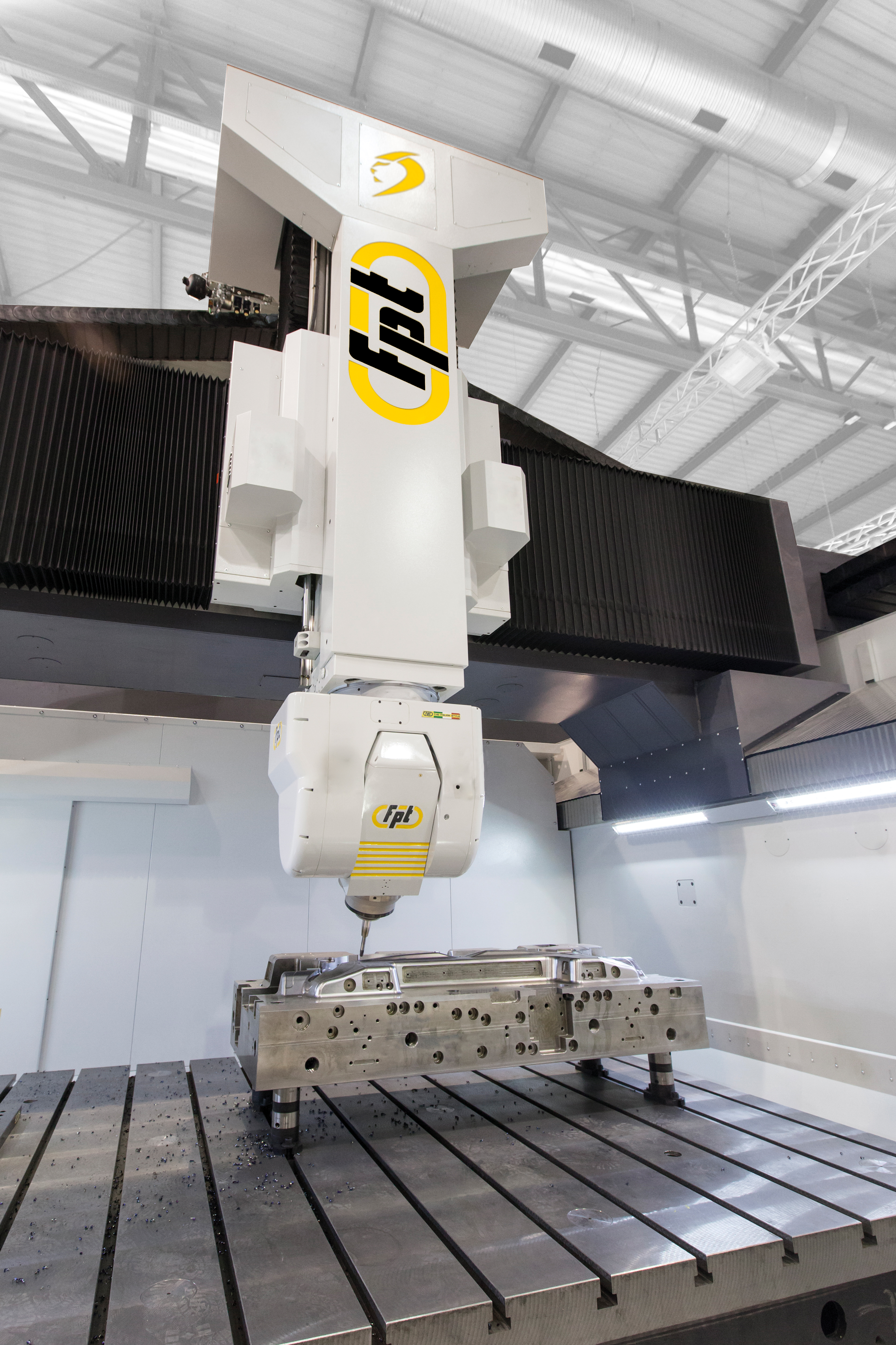

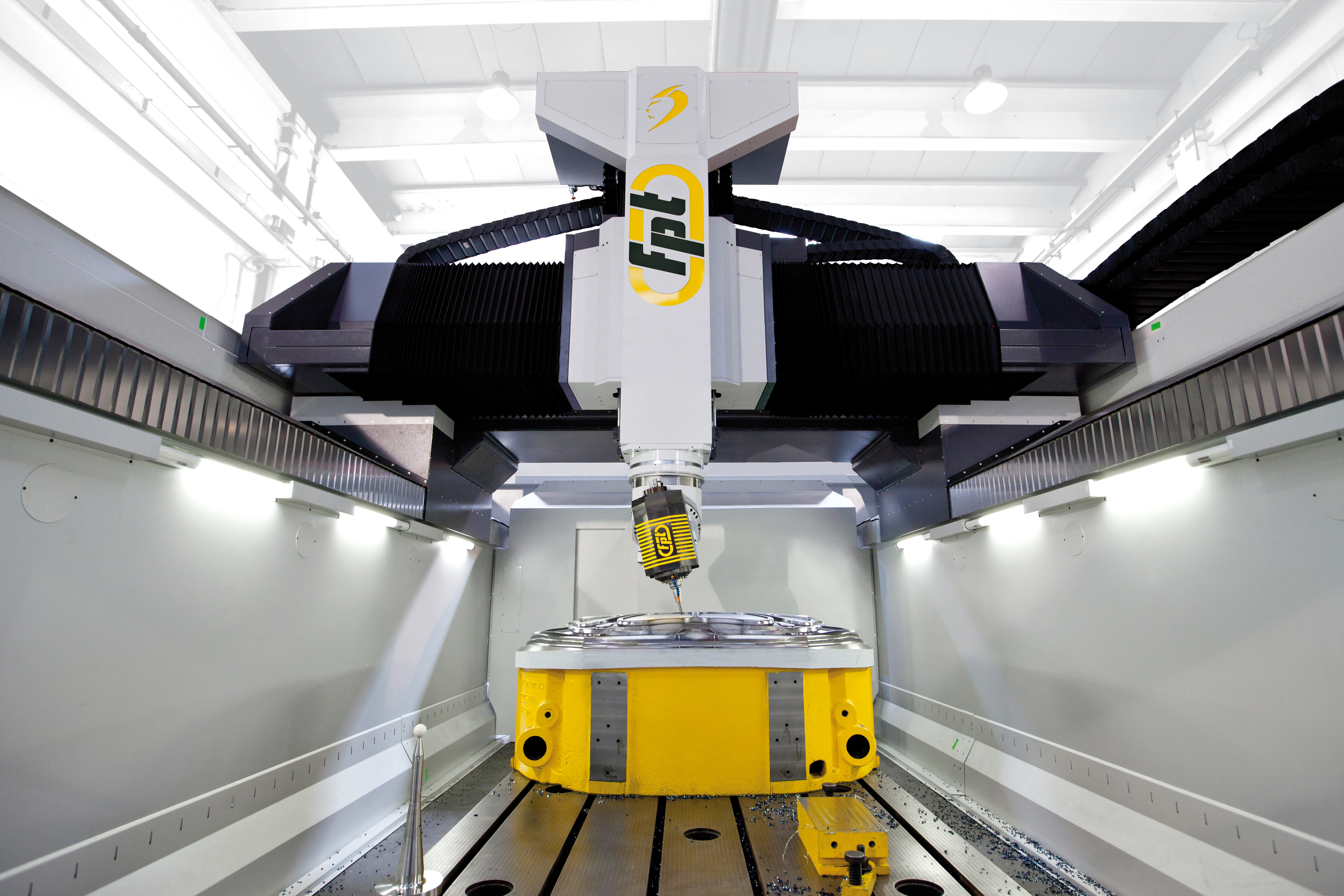

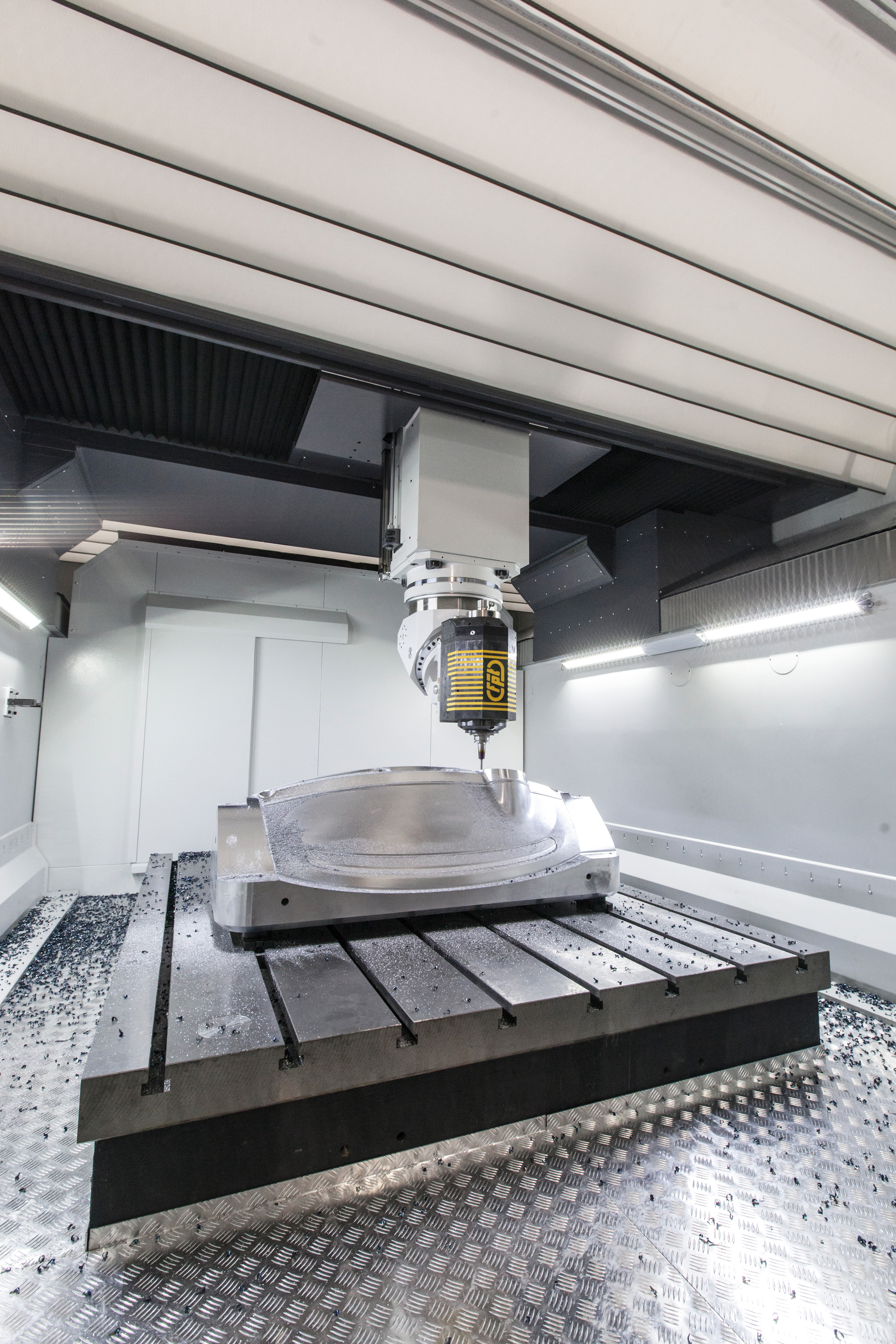

    The FPT Dinox 220 IAT is a high-performance vertical milling machine with a gantry-type moving crossbeam design, engineered for both heavy-duty roughing and high-speed finishing. Its structure, optimized through advanced FEM analysis, ensures maximum rigidity and vibration damping, while the integrated IAT – Intelligent Active Thermal control system guarantees precision by compensating for temperature variations during machining.

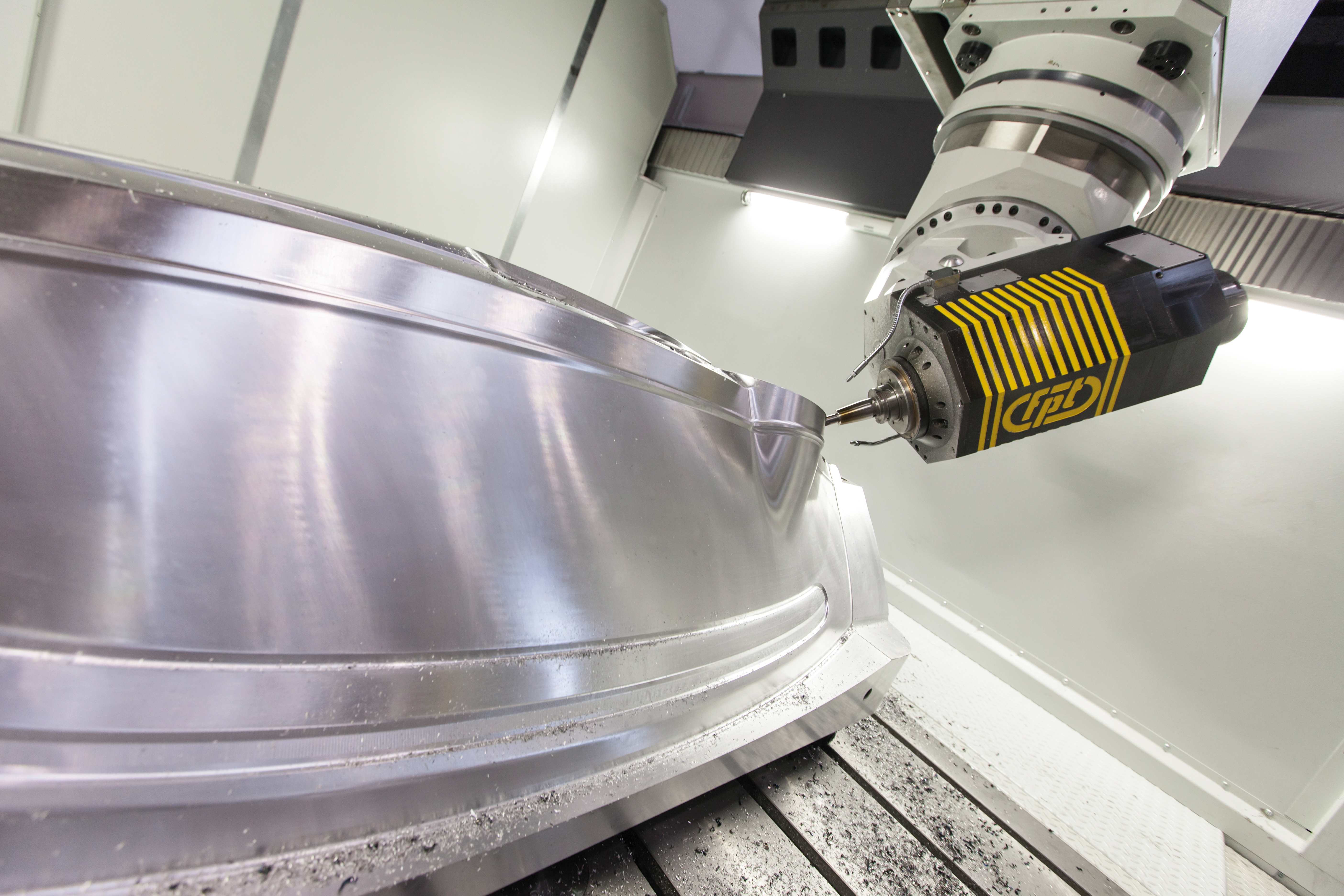

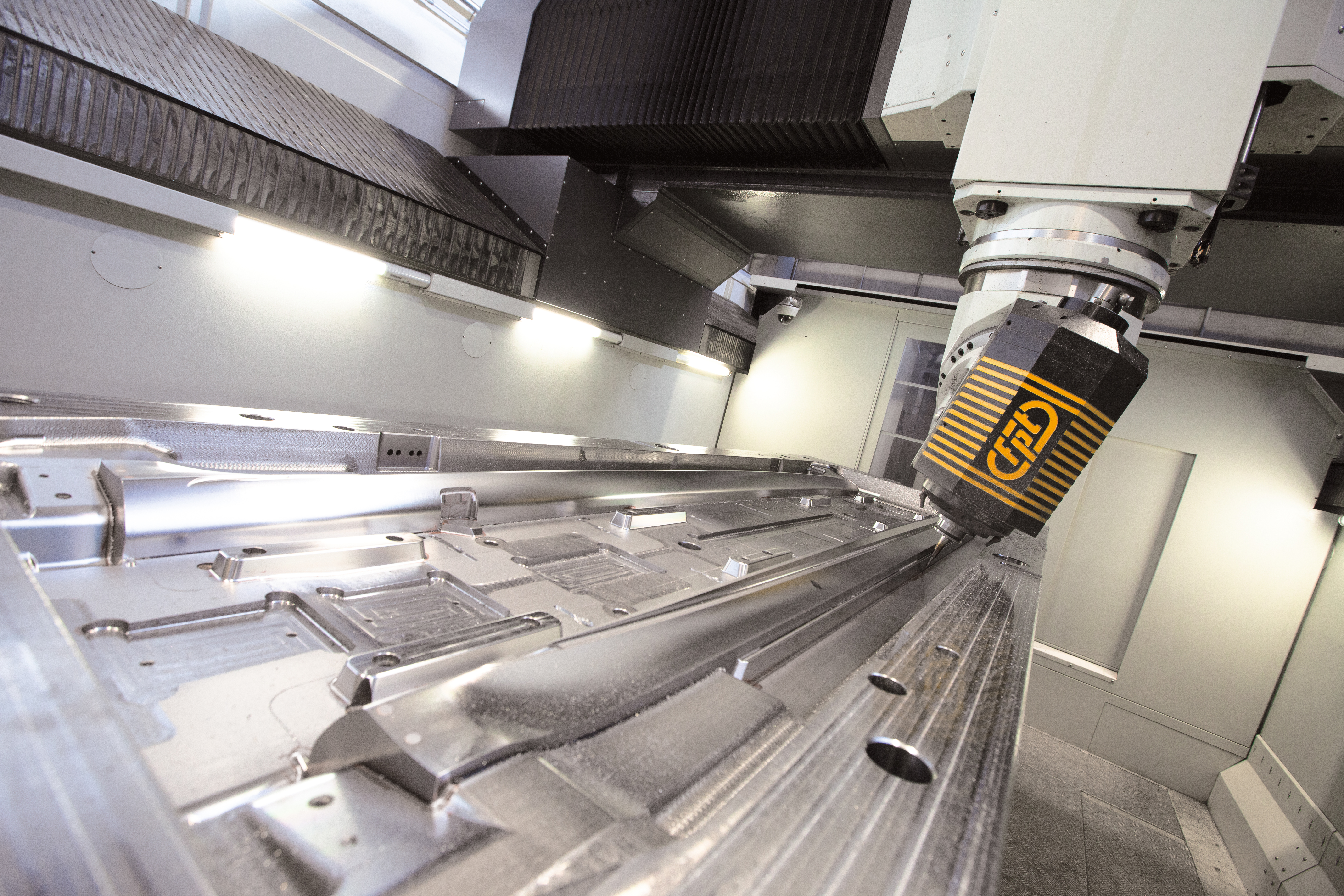

    Equipped with linear motor drives and a wide range of head configurations, the Dinox 220 IAT delivers flexibility for complex 5-axis operations. Tool magazine options up to 300+ tools support extended autonomous machining, making it a reliable solution for large, high-value part production.

    Ideal For

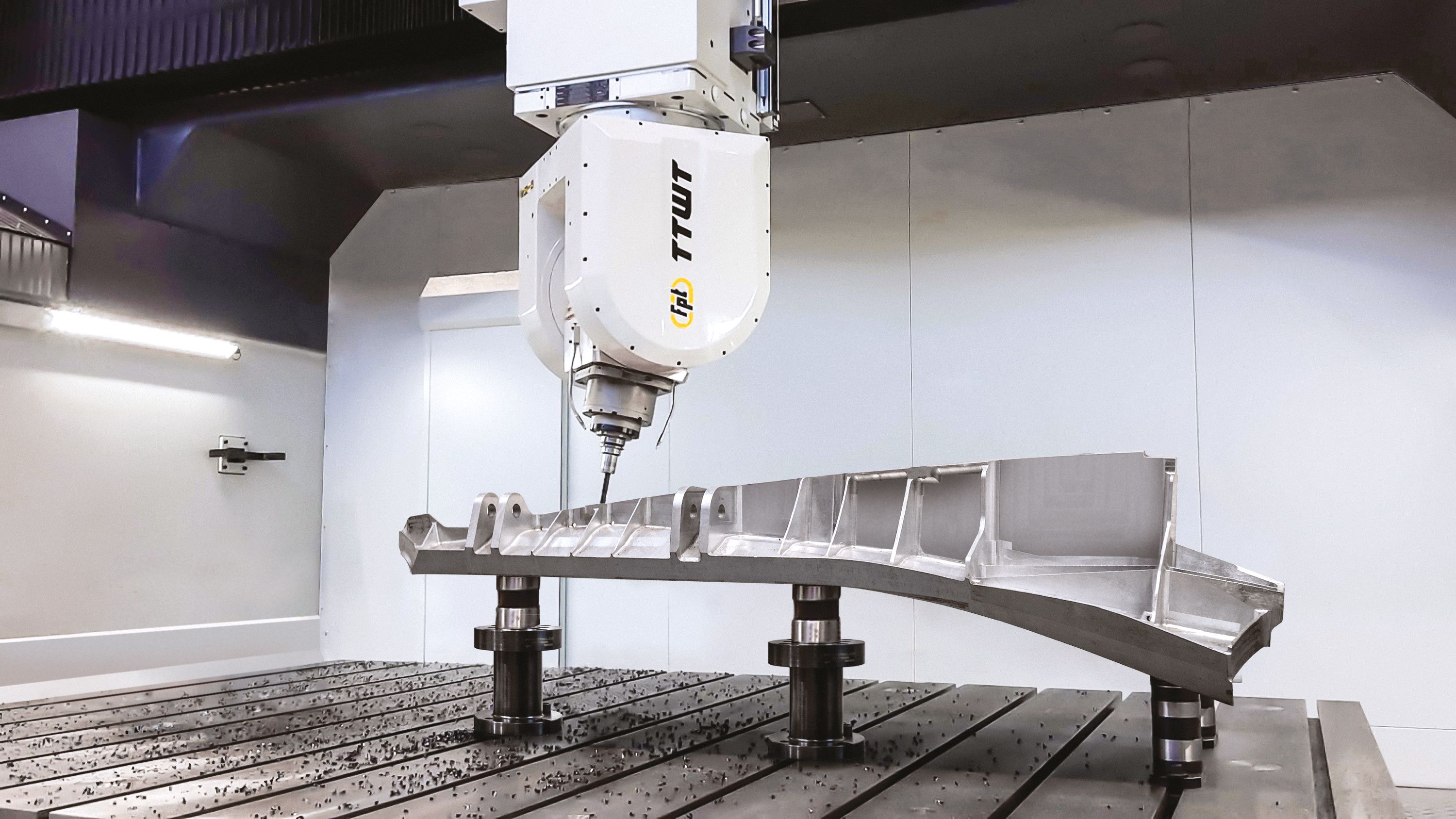

    The Dinox 220 IAT is ideal for industries requiring precision 5-axis machining of large components, such as aerospace, automotive, die & mold, and heavy engineering. Its blend of rigidity, accuracy, and thermal stability ensures consistent results in demanding production environments.

    Travels

    Travels - X Axis Travel distance (mm) 2500
    Travels - Y Axis Travel distance (mm) 2200
    Travels - Z Axis Travel distance (mm) 1100
    Travels - X Axis Rapid Traverse (m/min) 50
    Travels - Y Axis Rapid Traverse (m/min) 50
    Travels - Z Axis Rapid Traverse (m/min) 50

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
