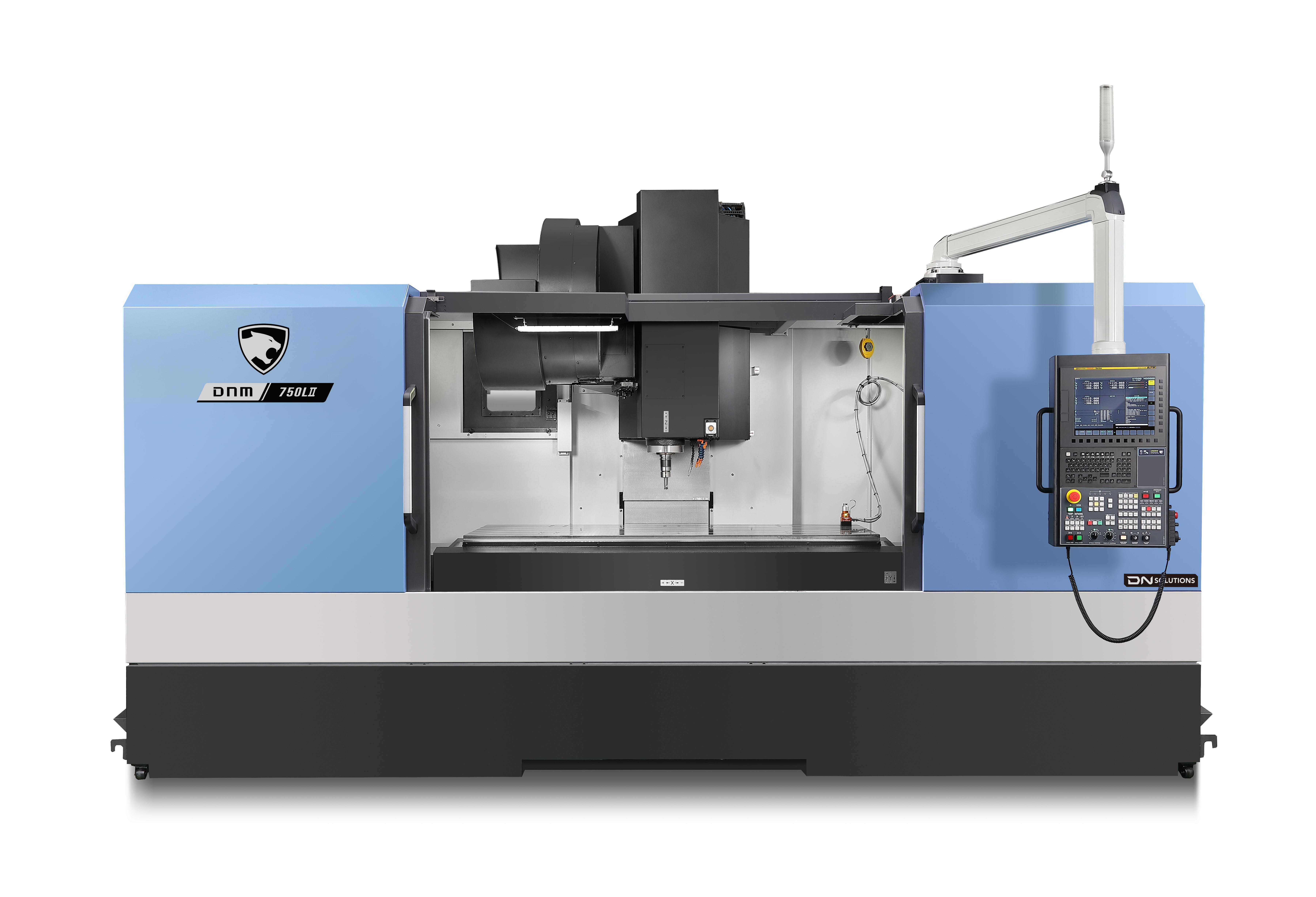

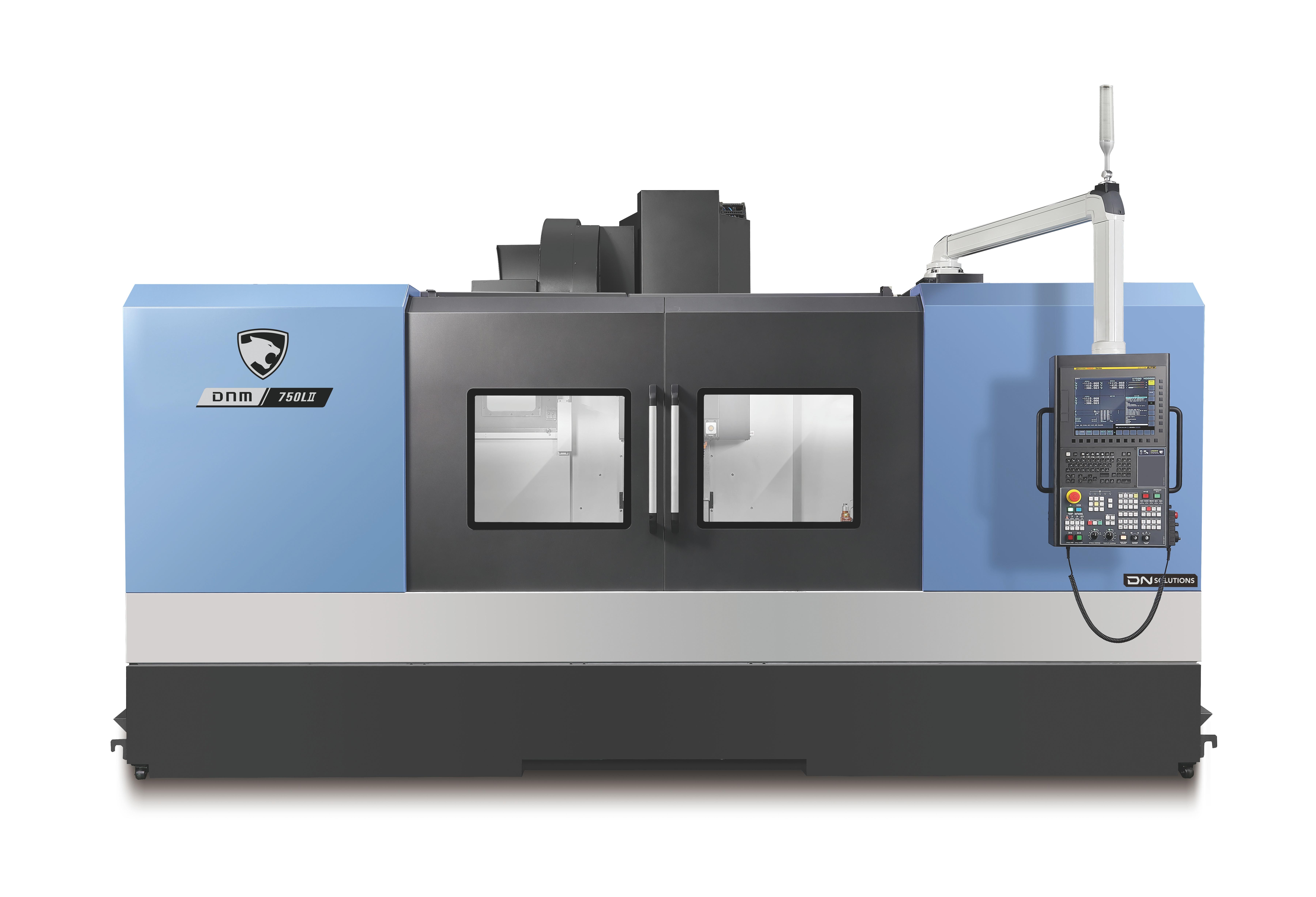

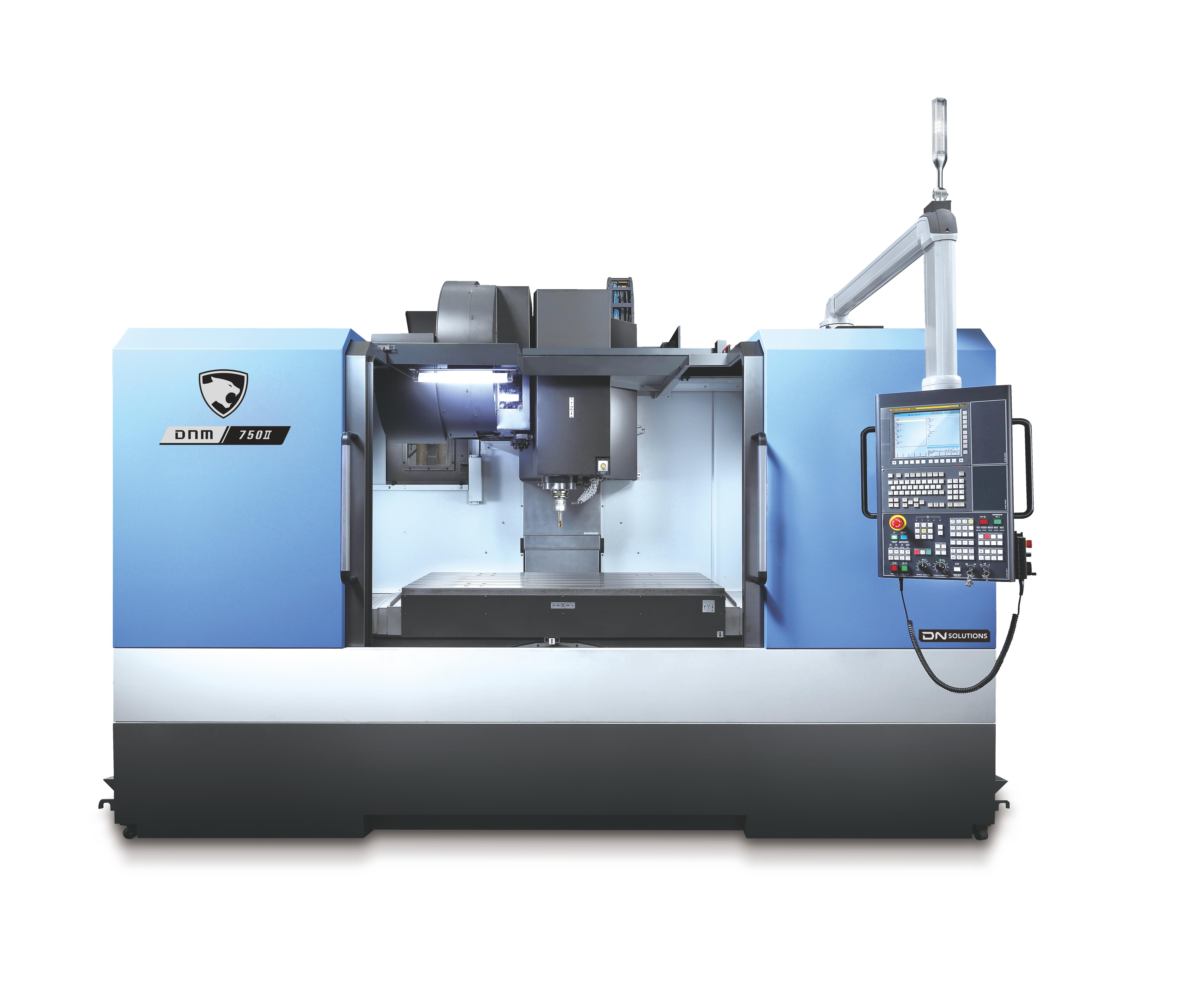

DNM 750 II Series
- Daudzpusīga veiktspēja: augsts ātrums, izturība un pielāgojamība padara DNM sēriju ideālu dažādiem apstrādes pielietojumiem.
- Eko-draudzīga darbība: rullīšu vadotnēs izmantotā eļļošanas smērviela veicina ilgtspējību, vienlaikus saglabājot maksimālu veiktspēju.
- Kompakta efektivitāte: tādi modeļi kā DNM 4000 maksimāli palielina produktivitāti nelielās telpās, piedāvājot funkcijas, kas veicina operatora ērtības un komfortu.
Highlights
- Travels - X Axis Travel distance (mm): 1630
- Travels - Y Axis Travel distance (mm): 762
- Travels - Z Axis Travel distance (mm): 650
Compatible Control System
Series description
|
The DNM Series continues its legacy of success with enhanced reliability and performance in its latest models. Focused on high speed, high rigidity, and versatility, the DNM 4500/5000/6500 models cater to a wide range of machining applications. The series now features eco-friendly grease lubrication for roller guideways, ensuring sustainable operation. The compact DNM 4000, with a 400mm Y-axis stroke and directly-coupled 40 taper spindle, maximizes productivity in a minimized footprint, perfect for space-constrained environments. The DNM 750 II series further enhances performance with directly coupled spindles, rigid columns, and user-friendly Ez work functions for improved efficiency and ease of use. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 1630 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 762 |
| Travels - Z Axis Travel distance (mm) | 650 |
| Travels - Z Axis Rapid Traverse (m/min) | 24 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 30 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 30 |

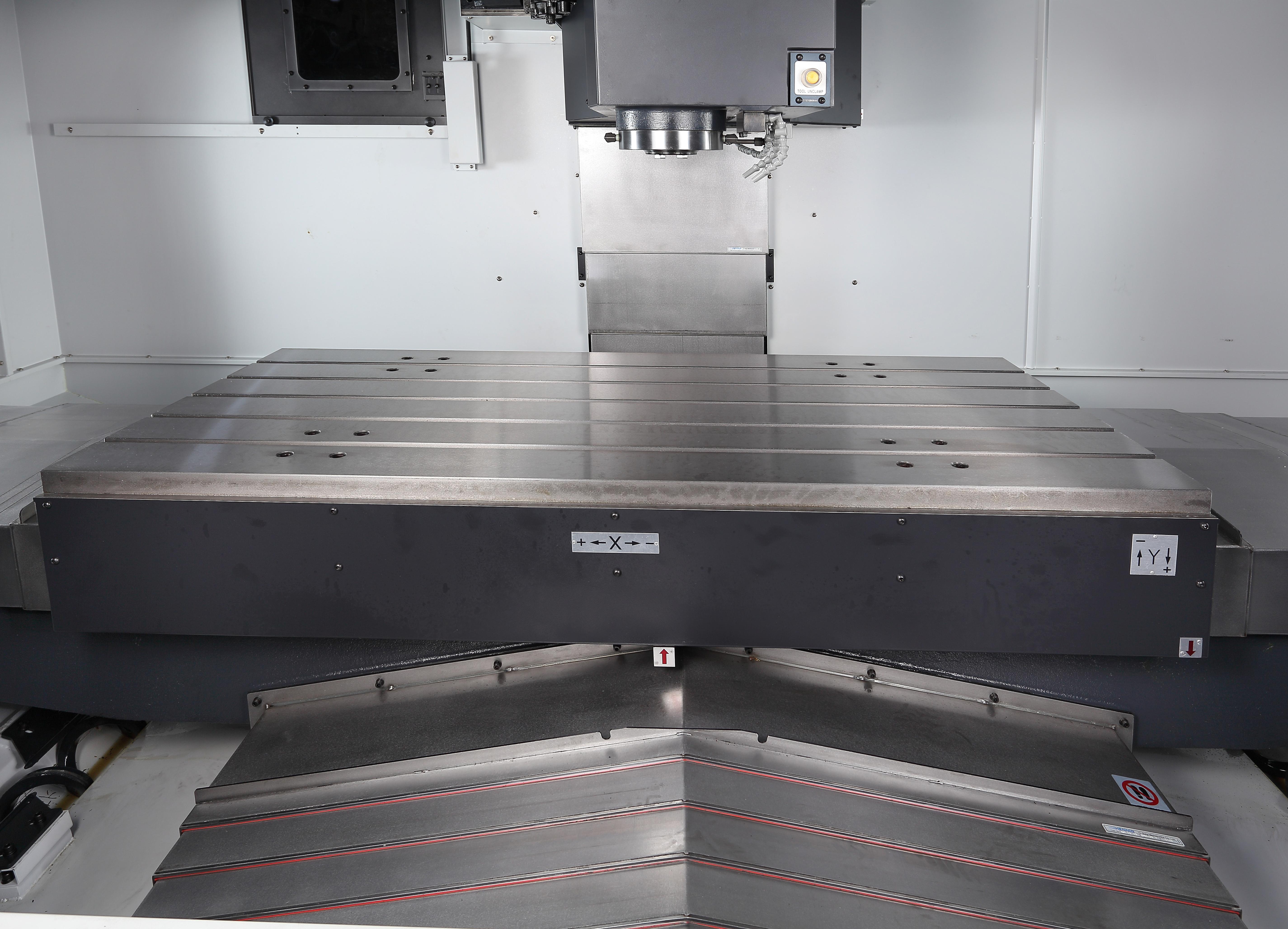

Table
| Table Length (mm) | 1630 |
|---|---|
| Table Width (mm) | 760 |
| Max. Workpiece weight (kg) | 1500 |
| Pallet Size (mm) | 1630x670 |
| Max. Table weight (kg) | 1500 |
Workpiece capacity
| Max. Workpiece Height (mm) | 725 |
|---|---|
| Max. Workpiece weight (kg) | 1500 |

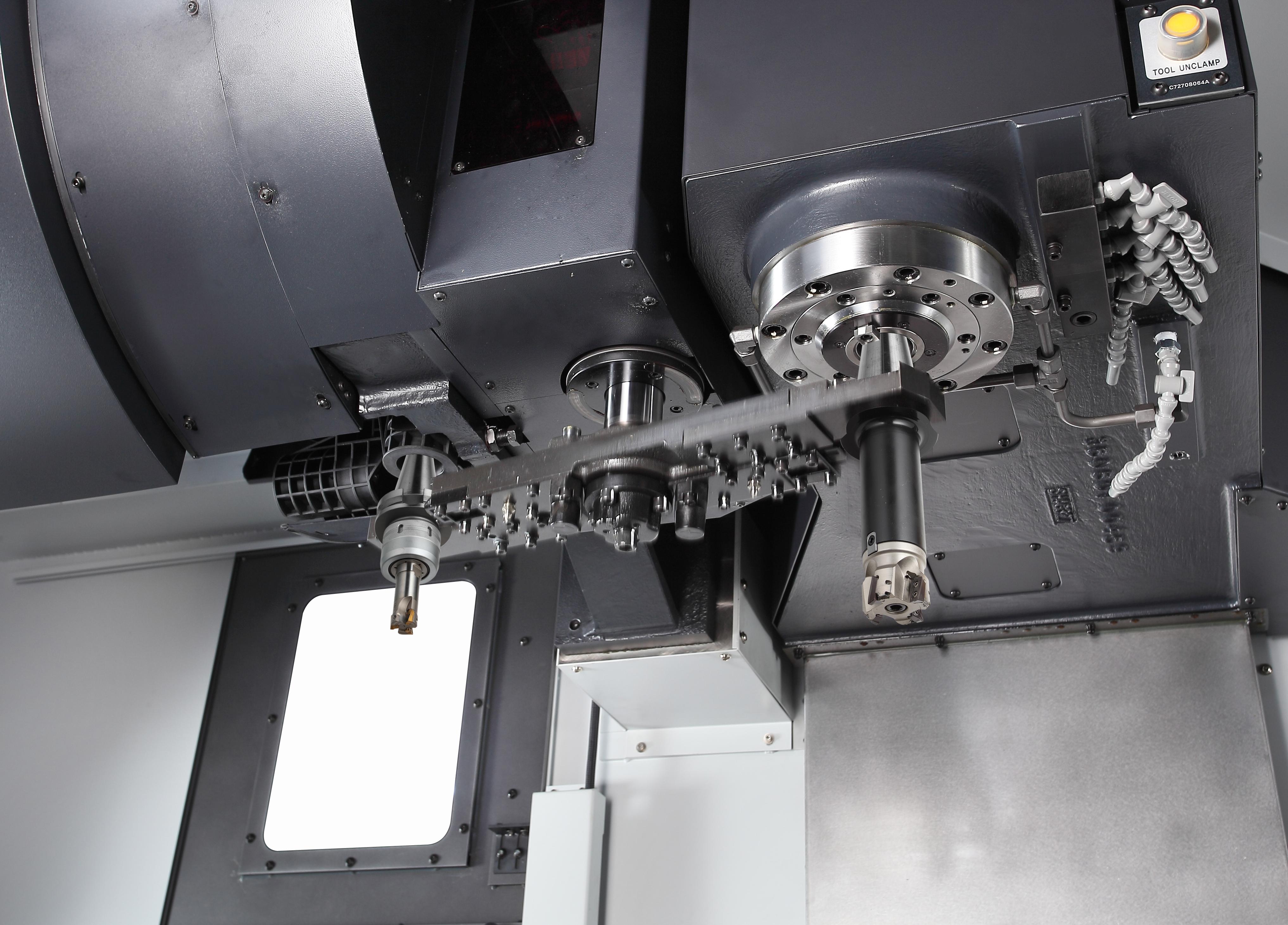

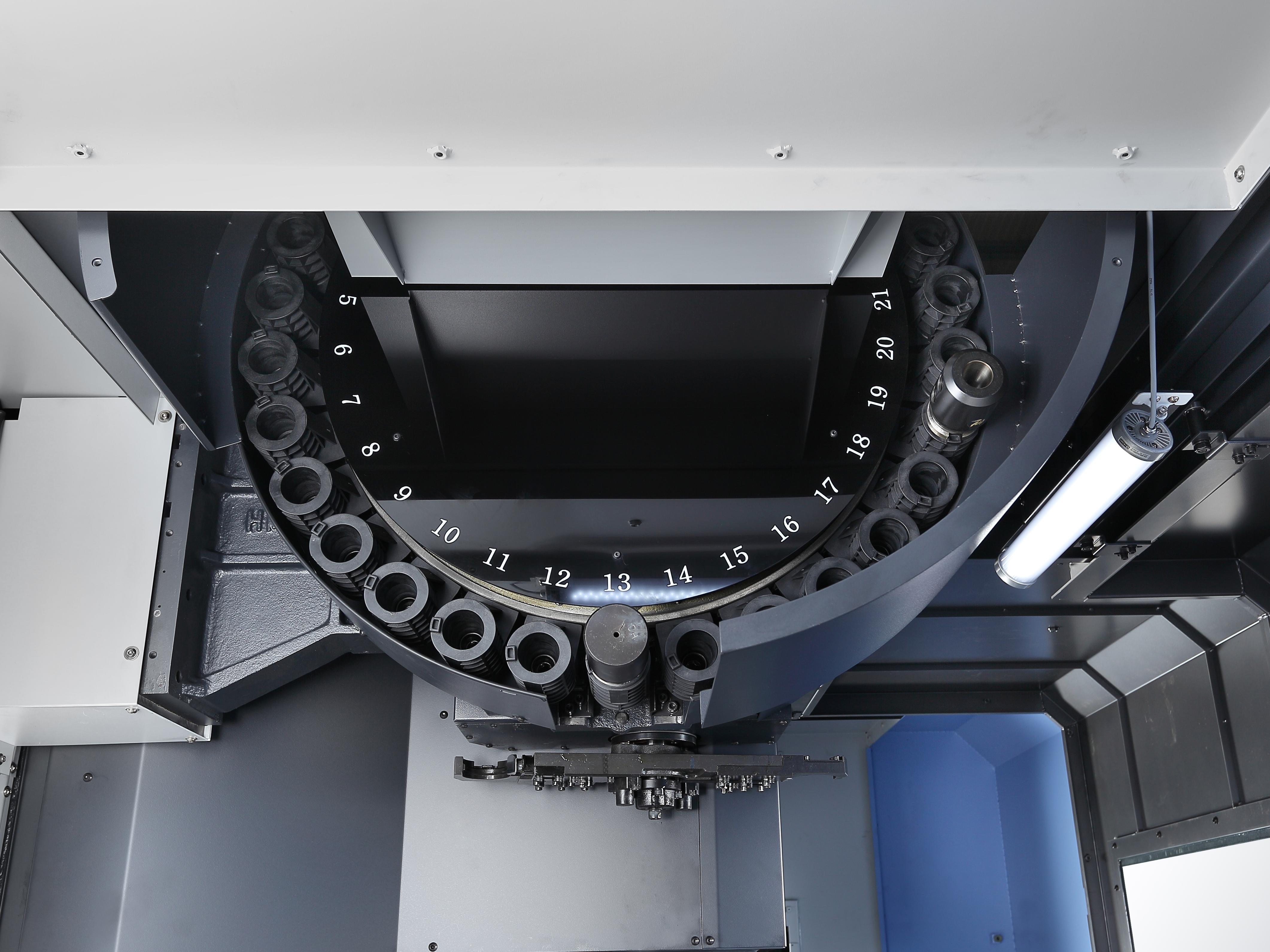

Tool storage capacity
| Machining center - No. of tool station | 30 |
|---|

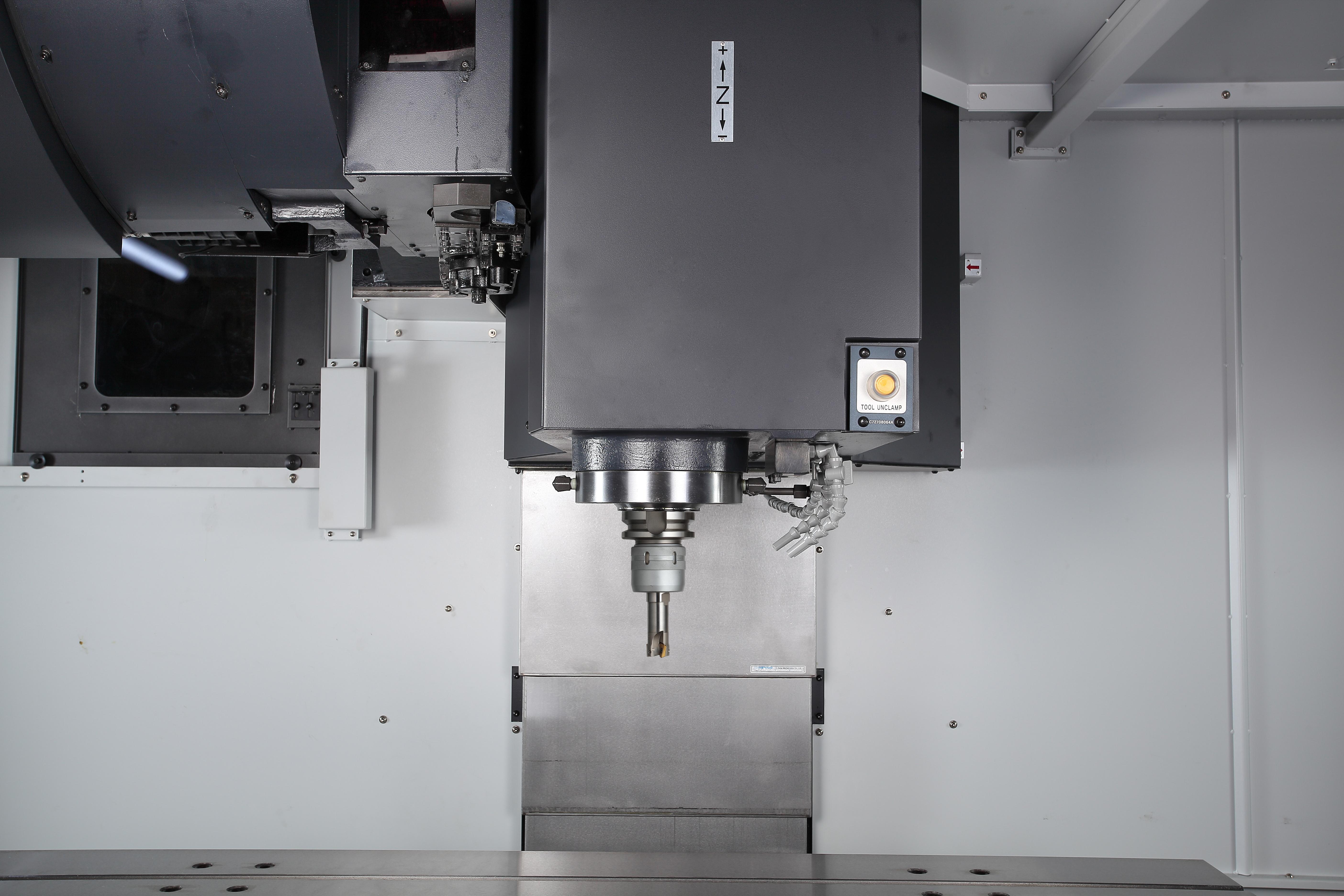

Main spindle
| Main Spindle Max. Speed | 8000 |
|---|---|
| Main Spindle Max. Power | 18.5 |
| Main Spindle Max. Torque | 118 |
| Tool Taper (ISO) | BT40 |
Turret
| Turret - No. of tool station | 30 |
|---|
Dimensions
| Length (mm) | 3480 |
|---|---|
| Height (mm) | 3170 |
| Width (mm) | 3850 |
| Weight (kg) | 13500 |
| Vārds | Lejupielādēt | Faila veids | |
|---|---|---|---|
|
DNM 650_50_750_50.pdf | 3105 KB |
Series delivery and installation
|
Projekta komanda kontrolē visu procesu, ieskaitot iekārtas piegādi, uzstādīšanu un nodošanu ekspluatācijā, nodrošinot netraucētu projekta plūsmu. Projekta komanda nodrošina koordināciju un komunikāciju starp projekta pusēm, ieskaitot klientu, Duroc Machine Tool un jebkuru trešās puses apakšuzņēmēju. |
